Outdoor power station supply is a multi-functional portable AC/DC power supply that can store electrical energy by itself, also known as portable power supply station. Its characteristics are large capacity, small size, rich interfaces and strong compatibility. It has both DC output (DC 5-20V) and AC output (AC 220V), supporting simultaneous charging of multiple devices, which is convenient for users to use in different scenarios and offers more choices.

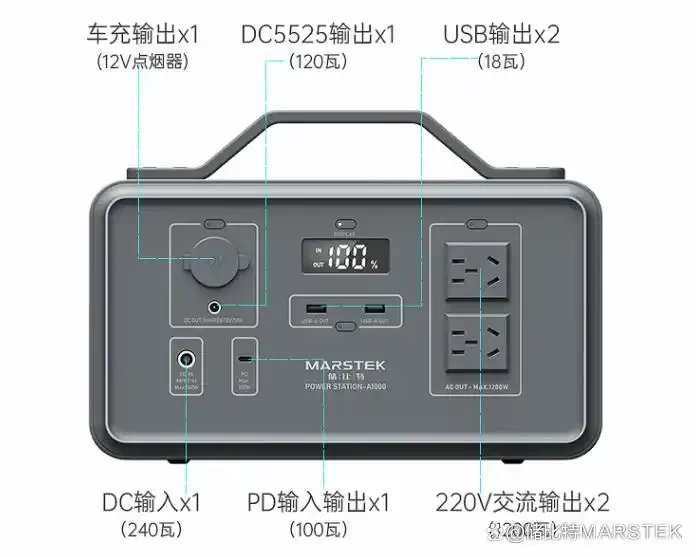

The output interfaces of outdoor power station can roughly be classified into the following types: AC, USB-A, Type-C, car charger, and DC port. Take the storage bit A1000 outdoor power supply as an example. Its total output power is 1200W and it can charge seven devices simultaneously. It has 2 AC ports, 2 USB-A ports, 1 Type-C port, 1 car charger port and 1 DC5525 port.

AC output: 220V~ 50Hz 5.46A 1200W (peak 2400W)

USB-A output: 5V3A, 9V2A, 12V1.5A;

Type-C output: 5V3A, 9V3A, 12V3A, 15V3A, 20V5A;

Vehicle charging output: 12V10A, 120W Max;

DC5525 output: 12V10A, 120W Max.

Among them, the AC port is suitable for 220V household appliances, such as electric cookers, rice cookers, juicers, electric fans and other small-power household appliances; The USB-A port is applicable to digital devices such as smart phones, Bluetooth headphones, tablet computers and smart watches; The Type-c port supports PD100W fast charging, which can charge electronic devices such as ipads, iphones and laptops.The charging speed is several times faster than conventional charging. It only takes a few hours to fully charge, greatly reducing waiting time. The car charging port is generally suitable for car charging and can be used to recharge the car or charge various on-board devices. The DC port is suitable for devices such as electronic lamps, electronic speakers, POS machines, portable hard drive enclosures, projectors, digital photo frames, portable DVD players, and printers.

In addition to the output port, the outdoor power supply also has two input interfaces: the DC input port (12-30V/10A, 240W Max) and the Type-C bidirectional interface (5-20V5A PD 100W). It supports the following four charging methods: AC charging, solar charging, vehicle charging, and Type-C charging.

AC AC charging
Charging can be carried out through the AC interface anywhere there is alternating current. The storage bit A1000 outdoor power staion portable supports a 240W input and can be fully charged in 4.5 hours.

Solar energy chargingWhere there is light, there is electricity. Outdoor power sources can be used in combination with portable solar panels. Where there is sufficient solar light, they can be charged through photoelectric conversion. The 200W solar panel with storage bit adopts a one-piece molding design with glue injection, featuring IP67-level dust and water resistance. It is equipped with an MPPT solar cell charging management system, which can significantly enhance the efficiency of solar charging and charge 80% of the battery in 4.5 hours.

Charge the car.
In addition to solar panels, users on self-driving Tours can also charge outdoor power sources through the car charging port. However, compared with AC input and solar panel input, the charging speed of the car charger is relatively slow. Take the A1000 outdoor power supply as an example. Its car charger input is only 120W, and it usually takes about 10 hours to fully charge.

Type-C charging
Portable outdoor power station with Type-C bidirectional ports can also be charged through this interface. Generally, the power of the Type-C port is around 100W, which can assist the DC input port in charging simultaneously.
