High quality cell : Megmeet 51.2V 100Ah lifepo4 lithium battery adopts A-grade cell, which can store 5.12kwh of energy, with a maximum output power of 5120w, and can be recycled more than 6000 times, with a service life of more than 15 years.
BMS Protection: Megmeet 51.2V 100Ah lifepo4 lithium battery can be charged at 0°C~50°C temperature and discharged at -20°C~60°C temperature. The built-in 100A BMS protects the battery from potential damage caused by high and low temperatures, short circuits. overcurrents, and overloads during operation.

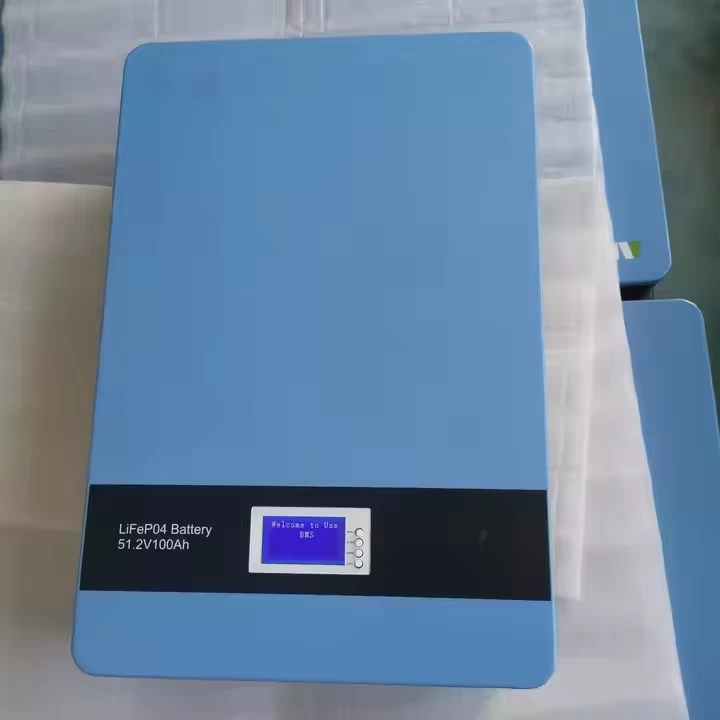

Intelligent Battery Management Screen: 51.2V lithium battery The external intelligent battery management system allows you to view battery information and the status of the built-in BMS at any time, so you can really keep track of your battery.
Battery Can Be Combined: The 51.2V lithium battery can be connected in parallel with up to 15 identical batteries, thus giving you greater energy storage.
Product Technical Specification Parameters
|
|
Items
|
Parameters
|
Noted
|
|
Performance
|
Battery Voltage
|
51.2V
|
16S
|
|
Battery Capacity
|
100Ah
|
0.5C
|
|
Charging Cut-Off Voltage
|
58.4V
|
Single Cell 3.65V
|
|
Discharging Cut-Off Voltage
|
40V
|
Single Cell 2.5V-Adjustable
|
|
Charging Current
|
100A
|
Maximum Current-200A
|
|
Discharging Current
|
100A
|
Continuous Working Current
|
|
Internal Resistance
|
≤25mΩ
|
|
|
Protections
|
Over -Charging Voltage Protection
|
58.4V
|
Settable
|
|
Over-Discharging Voltage Protection
|
40V
|
Settable
|
|
Charging Over-Current Protection
|
100A
|
Settable
|
|
Short Circuit Protection
|
YES
|
Remove load or charging can be lifted
|
|
BMS Temperature Protection
|
-25℃~70℃
|
Electricity and ambient temperature protection
|
|
Use Environment
|
Working Temperature
|
-10℃~60℃
|
|
|
Storage And Shipping Temperature
|
-20℃~55℃
|
|
|
Relative Humidity
|
95%
|
|
|
Atmospheric Pressure
|
70kPa-106kPa
|
|
|
Dimensions
|
Weight
|
46±1%Kg
|
Net weight
|
|
Weight
|
60±1% Kg
|
Gross Weight
|
|
Shell Marital:Sheet Metal
|
Sheet Metal Spray
|
White+black (optional)
|
|
Size
|
620x400x240±3mm
|
Not including Install a baffle
|
|
Size
|
725x485x465±3mm
|
out packing size
|
