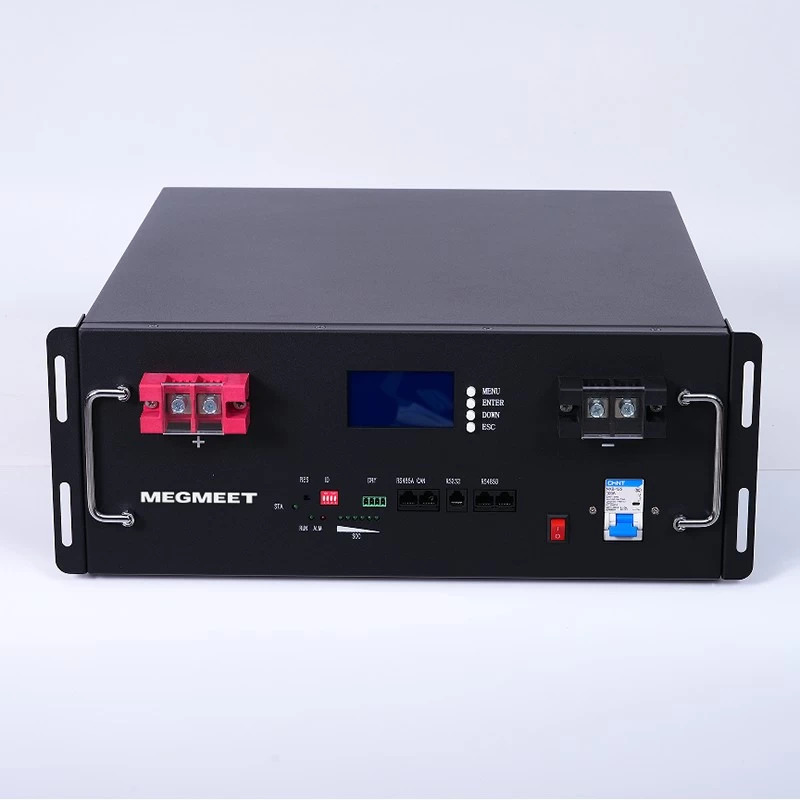

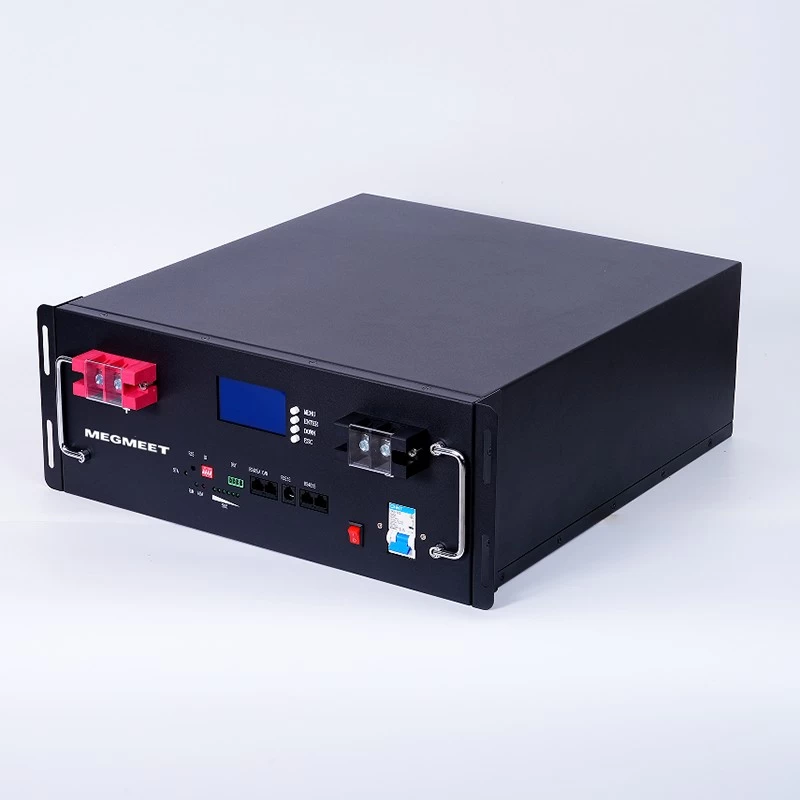

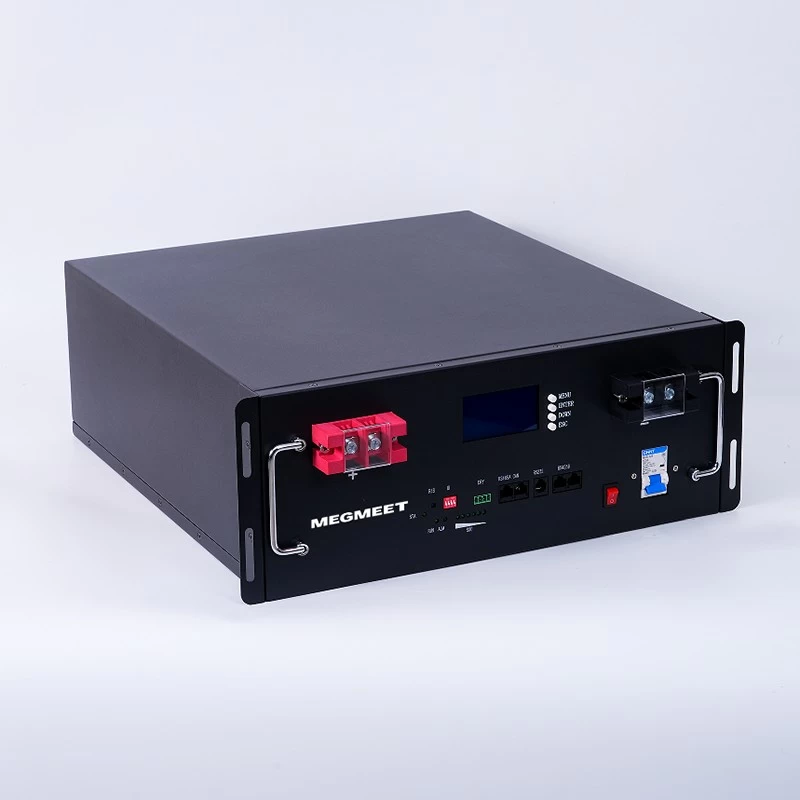

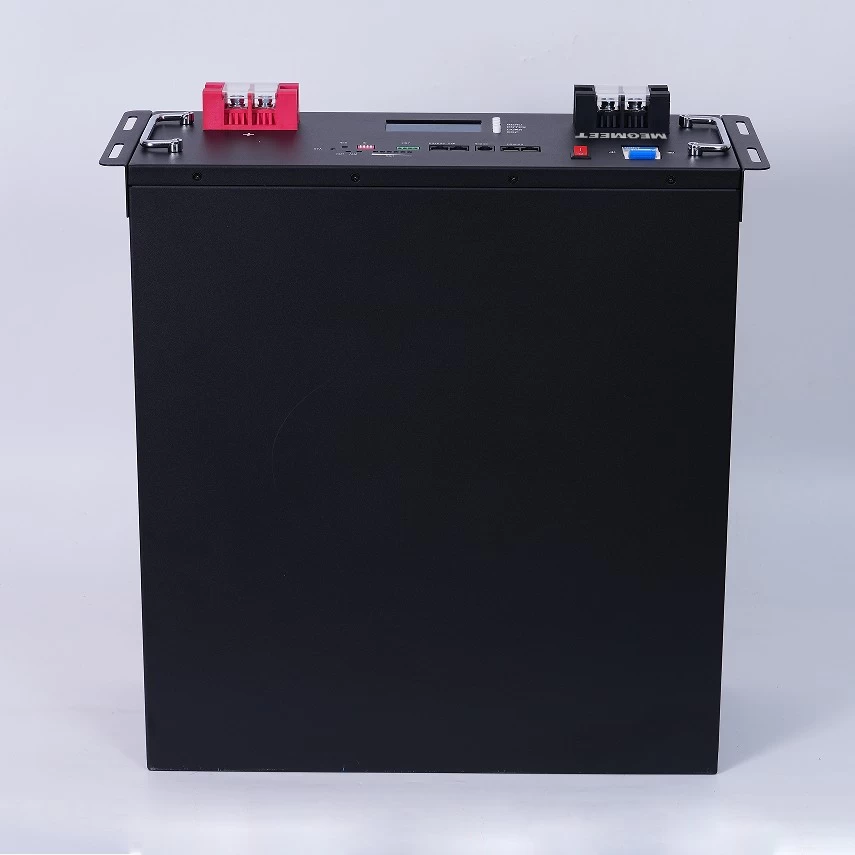

Grade A battery Cell: Megmeet 51.2V 200Ah LiFePO4 Battery Manufactured with automotive grade battery cells. High quality battery cells make LiFePO4 battery to provides 6000+deep cycles and up to 15- year life time.

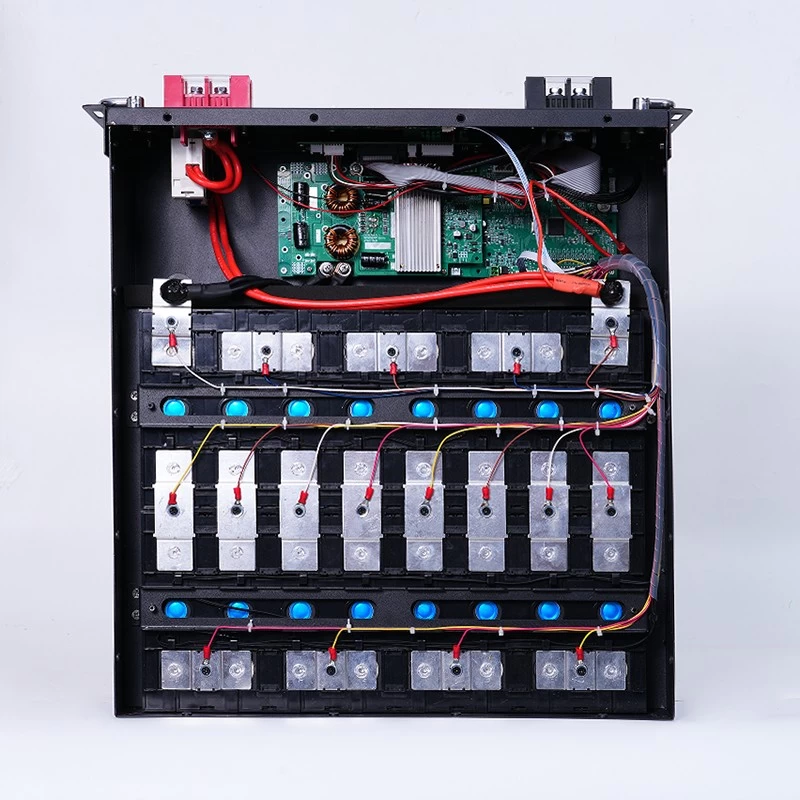

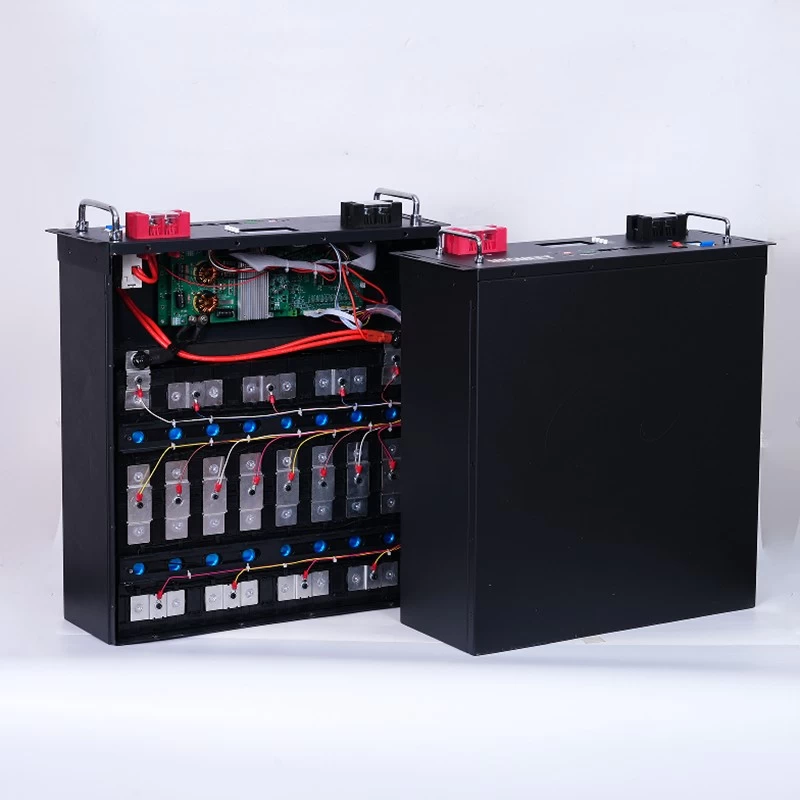

Intelligent BMS: megmeet 51.2V 200Ah Battery’s Battery Management System can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.
Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.
Product Technical Specification Parameters
|
|
Items
|
Parameters
|
Noted
|
|
Performance
|
Battery Voltage
|
51.2V
|
16S
|
|
Battery Capacity
|
200Ah
|
0.5C
|
|
Charging Cut-Off Voltage
|
58.4V
|
Single Cell 3.65V
|
|
Discharging Cut-Off Voltage
|
40V
|
Single Cell 2.5V-Adjustable
|
|
Charging Current
|
100A
|
Maximum Current-200A
|
|
Discharging Current
|
100A
|
Continuous Working Current
|
|
Internal Resistance
|
≤25mΩ
|
|
|
Protections
|
Over -Charging Voltage Protection
|
58.4V
|
Settable
|
|
Over-Discharging Voltage Protection
|
40V
|
Settable
|
|
Charging Over-Current Protection
|
100A
|
Settable
|
|
Short Circuit Protection
|
YES
|
Remove load or charging can be lifted
|
|
BMS Temperature Protection
|
-25℃~70℃
|
Electricity and ambient temperature protection
|
|
Use Environment
|
Working Temperature
|
-10℃~60℃
|
|
|
Storage And Shipping Temperature
|
-20℃~55℃
|
|
|
Relative Humidity
|
95%
|
|
|
Atmospheric Pressure
|
70kPa-106kPa
|
|
|
Dimensions
|
Weight
|
79±3%Kg
|
Net weight
|
|
Weight
|
94±3% Kg
|
Gross Weight
|
|
Size
|
483x600x266±3mm
|
Not including Install a baffle
|
|
Size
|
705x590x485±3mm
|
out packing size
|
